MotionMax Software (Ultimate 2/3/4/5/6DOF Simulator Manager)

MotionMax Software
(Ultimate 2/3/4/5/6DOF Simulator Manager)

©2015-2019 by Zappadoc All Rights Reserved.



MotionMax Manager 6DOF is a true 6 DOF dedicated to car racing simulation for PRO driving training and race track learning (not suitable for fly-sim ) with smart management of Pitch, Roll, Sway, Surge, Heave and Yaw Dynamics (Traction Loss).





MotionMax Manager project has been started in 2015 and includes the full support of 6 DOF motion simulator platform (and its 2/3/4/5DOF declination), From PRO to casual with a full 1:1 level motion driving simulator to a simple cockpit or VR rig our 6DOF (or 5DOF version) of MotionMax Manager is easy and powerful and supports a maximum of games and simulations.

MotionMax Manager is definitively a PRO Racing driving simulator software even if it can be use for flying-sim. The internal vehicle physics interpreter (V.P.I.) provides an ultra-realistic motion result in all car categories (Formula 1 and other open wheel categories/Endurance/Proto/GT/Rally/Kart).

It contains an unique and exclusive “Yaw Dynamics” feature to accurately control the amount of the traction loss without the need of additional actuator in . With the capability to generate up to 1000 positions per second, it is only limited by the specs of the actuators in terms of accelerations, speed and load.

Over the past decade, manufacturers of motion simulators have been focused on the FORCES and on force delivery. The forces involved in driving a car are important but NOT essential for PRO racing training. Almost all simulator of this kind today act like a pinball machine … and almost all PRO race car drivers ask to stop the motion simulator when they give this a try… this is perfectly normal, all the movements are over-reactive and exaggerated, they feel the forces but not the car and the road surface.

The force factor must be balanced with ultra-realistic movements to give the internal auditory system enough information to properly sense the car’s chassis and the road surface. This balance is the key feature to the internal V.P.I. system of MotionMax Manager (Vehicle Physics Interpreter) and even if we also provide a 5DOF management software this is ONLY possible on a real 6DOF motion platform, The Yaw Dynamic System completes the V.P.I to manage the traction control without additional DOF machinery (another unique feature of MotionMax Manager 6DOF). All other machines will NEVER give you a complete information from the car racing simulation. If you still want a more conventional simulator for your non PRO configuration and DIY projects you may consider the MotionMax 2/3/4/5 manager.

PRO drivers love our motion system, the feeling is natural, the motion signal pure and clear and the feedback is complete and accurate. They do not need more than a lap to feel at home and have a perfect control!



How To Get MotionMax?

MotionMax it is not yet available for purchase to the general public. It is included with simulators manufactured by private motorsports companies, OEM hardware motion simulator companies and actuator manufacturers who are in partnership with us.

Simulation And Game Studios:
Contact us for adding the support of your game/simulation to MotionMax Manager.

Electric Linear Actuators And Motion Platform Manufacturers:
Contact us if you’re a manufacturer and want us to add the support of your electric linear actuator to MotionMax Manager

Contact us by email (or use this form)





MotionMax 6 Manager 6DOF SCN Edition (MMX6)
(First Release v1.0 – 2018-06-20)

MotionMax 6 Manager 6DOF SCN Edition includes the SCN Actuator driver which is optimized to get the best of SCN Actuator. Also, default profiles (DOF settings) are included for your convenience to get started quickly with your favorite simulation. With a full control of your 6DOF simulator machine, you can fine tune the motion result to suit your needs. Obviously, you can create, modify and share your custom profiles very easily.

Click the image to get more info…



MotionMax 5 Manager SCN Edition (from 2 to 5 DOF)
Simulator Software Management
By Zappadoc ©2019 All Rights Reserved.
(MMX5 BETA Launched – 2019-03-20)

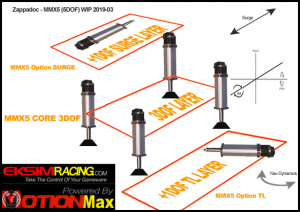

MotionMax 5 Manager, a more conventional 3 to 5 DOF simulator management with 3 distinctive layers, the CORE layer, the SURGE layer and the Traction Loss (TL) layer. We recommend MMX 6DOF for PRO car racing training, however for your DIY projects the modular MotionMax which start from 2DOF and can evolve to 5 DOF could be a solution.



MotionMax 5DOF SCN Edition software license contains:
+ the management of 4 SCN Actuators for the 3DOF (CORE layer)
+ an optional SCN actuator for Traction Loss (TC layer)
+ and/or an optional SCN actuator for the braking/accelleration (SURGE Layer)



MMX5 takes the benefit of the V.P.I. system (Vehicle Physics Interpreter) and yaw dynamics (TL) motion code of MotionMax 6. An ultra accuracy and efficiency motion result in all car categories (F1 and other open wheel categories/Endurance/Proto/GT/Rally/Kart) with more than 60 games/simulations supported. With the capability to generate up to 1000 positions per second, it is only limited by the specs of the actuators in terms of accelerations, speed and load.

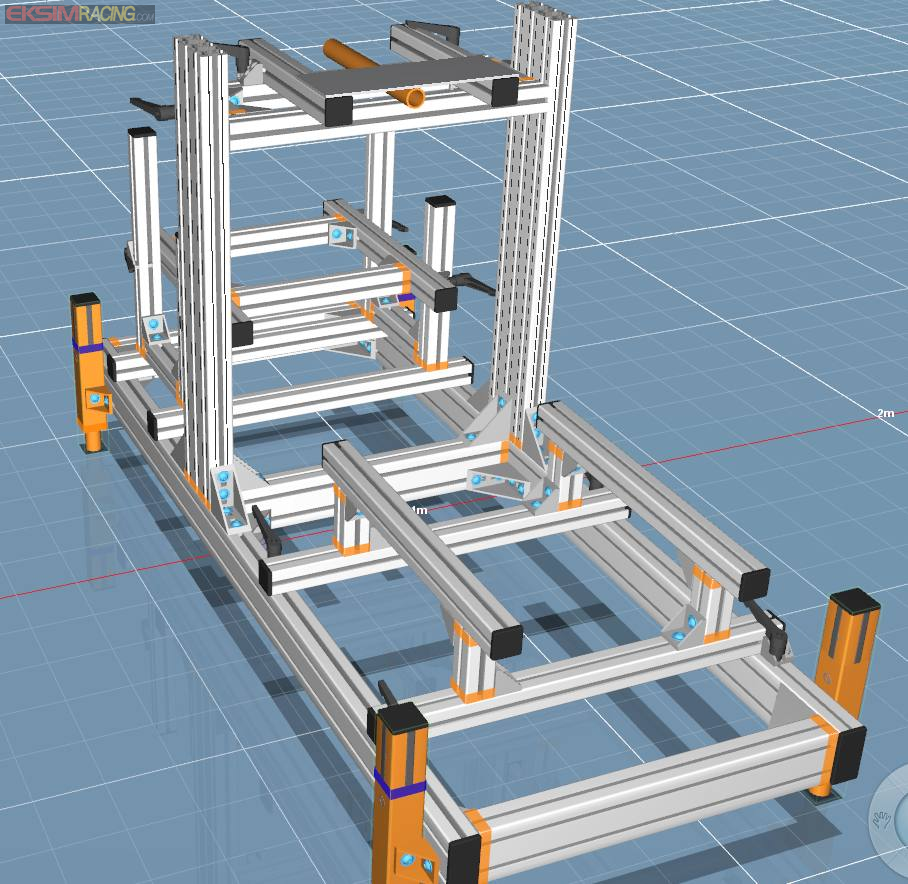

The CORE layer is a 3DOF system with 4 actuators including Pitch, Roll and Heave management (a 2DOF platform based on a pivot is also possible).

The optional SURGE layer on top of the CORE give you huge acceleration and braking by sliding backward/forward on top of the CORE platform using one or two actuator.

The TL Layer is a solid base under the CORE layer with a pivot on the front and an arched rail allowing the whole structure to be moved by an actuator.

5DOF Testing Platform in use during the development of MMX5:

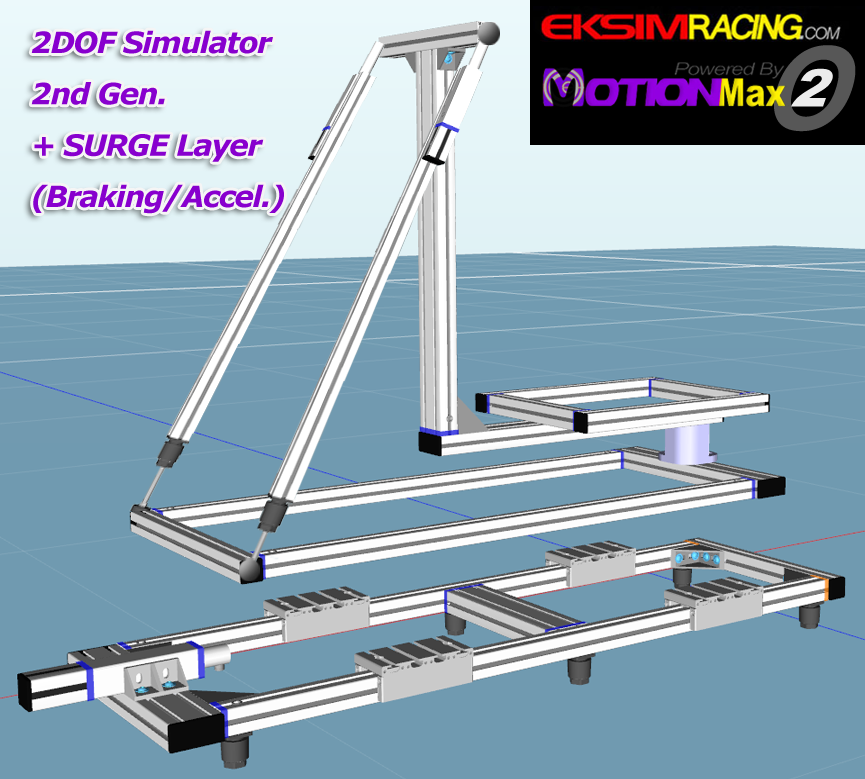

MMX 2DOF Concept + SURGE Layer (for huge braking/accelerations)



MotionMax 2DOF SCN Edition software license contains:
+ the management of 2 SCN Actuators for the 2DOF (CORE layer)
+ an optional SCN actuator for Traction Loss (TC layer)
+ and/or an optional SCN actuator for the braking/accelleration (SURGE Layer)

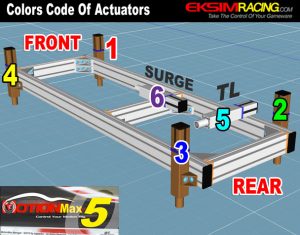

Colors Code:

As for MotionMax 6DOF a colors code are used to make life easier for users. The configuration are 4 Actuators or 4 Actuators +TL or 4 Actuators +Surge (Braking/accel.) or 4 Actuators+TL+SURGE.



System Requirements

Windows System Requirements:
Windows OS 64bit up to date 7/8/8.1/10 (recommended to run as Administrator on Windows 8/8.1/10)

Min. Hardware Requirements:
A gaming PC capable of running a simulation or game at 60 FPS or higher (screen resolution minimum 1600×900)
(with 2 USB 2.0 available or better with a HUB USB 2.0 with external Power Adapter)

Cockpit Requirements:
Base frame is a rectangle (aluminum profile 40×80 for example)
Ideal dimensions for placing actuators in each angle are 1000x500mm
minimum 800x400mm and maximum is 1200x600mm are allowed

Actuator Requirements:


Stroke: 100 mm (or 150 mm)
Speed: 150 mm/s (recommended 200 mm/s or more),
Load Static Max: 1470 N / 150 Kg (recommended 1960 N / 200 Kg or more)
Load Dynamic: 980 N / 100 Kg (recommended 1470 N / 150 Kg or more),

The MotionMax 2 or MotionMax 5 are now available to manufacturers of simulators or/and actuators, contact us if you’re interested and want us to add the support of your motion platform 2/3/4/5DOF to MotionMax.
